Triple Tree Sets

Choose from the following:

1948-1959

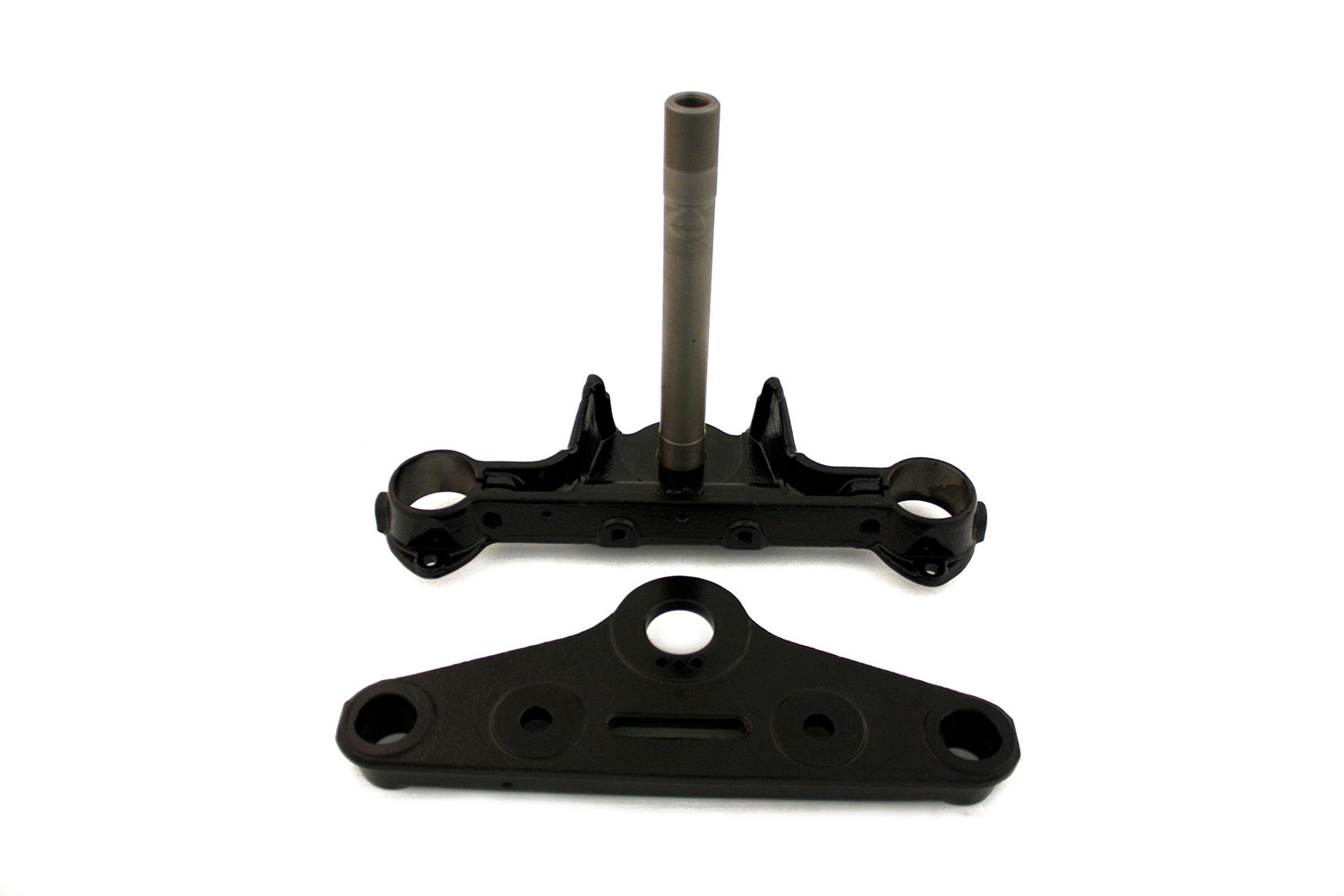

(#24082-9) Black triple tree set. Accepts 41mm fork tubes and tins. Top tree has 1/2″ holes for post riser mounting. Suggested for FL 1949-1959. OEM# 45700-49, 56121-48

1960-1968

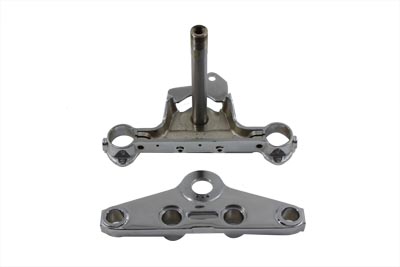

(#24080-0) Chrome triple tree set comes with lock tabs and accepts 41mm fork tubes. Can be fitted with aluminum cowl sets. Suggested for FLH 1960-1984. OEM#45700-60

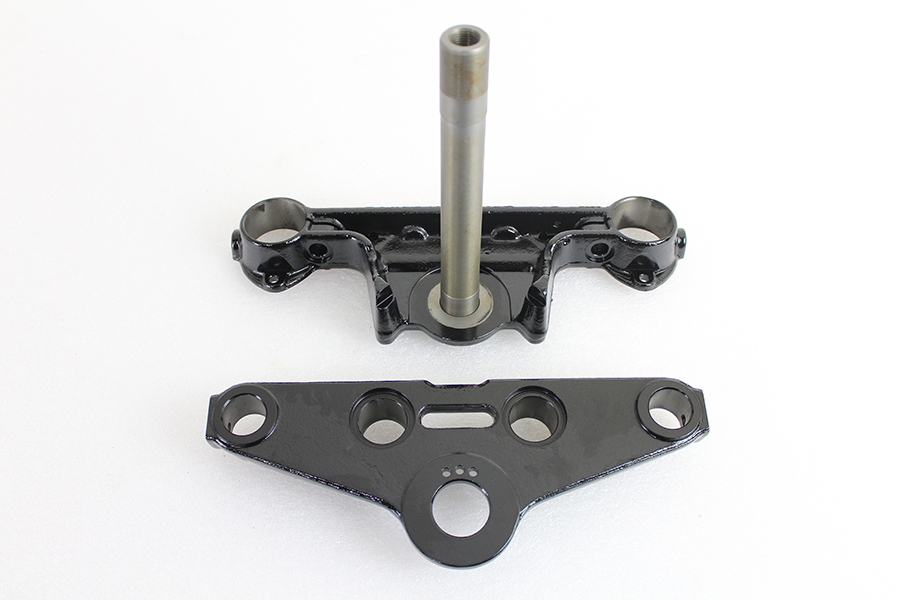

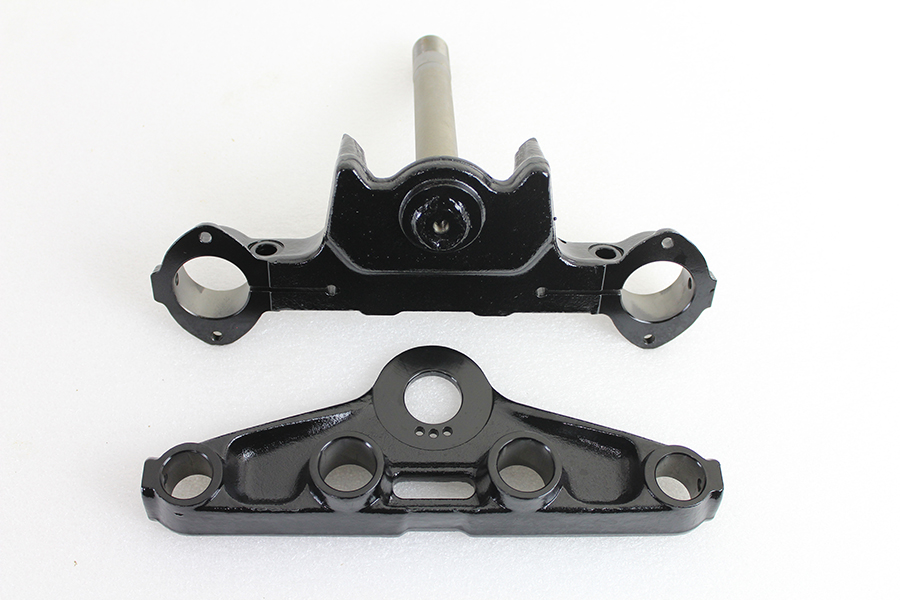

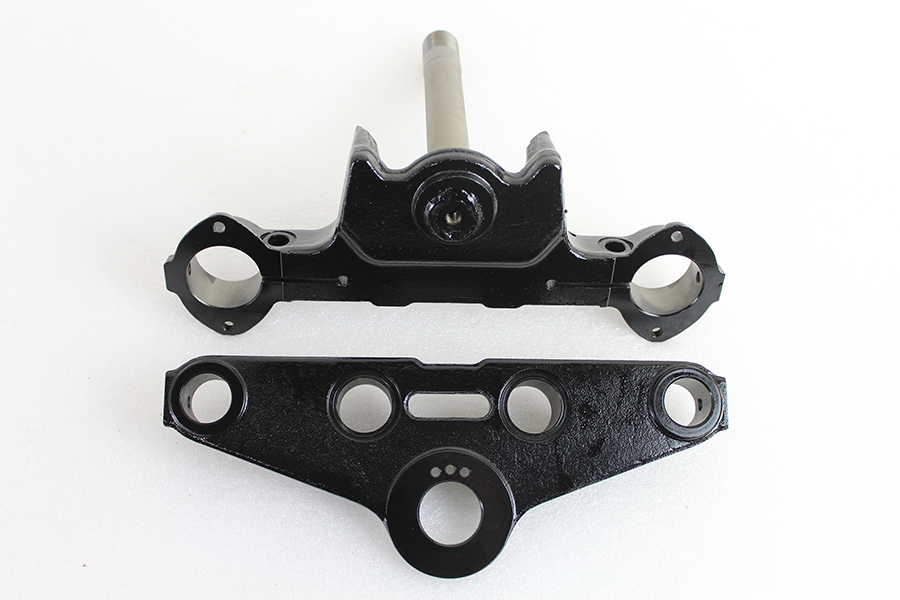

(#24132-9) Black Triple Tree Set accepts 41mm fork tubes. Lower tree does not have lock tab. Tree has a center damper knob hole.

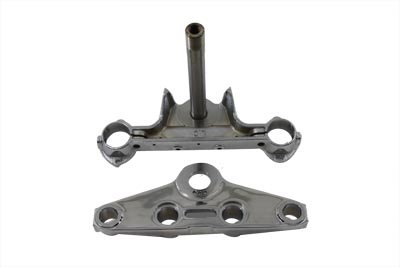

(#24048-6) Chrome triple tree set accepts 41mm fork tubes. Lower tree comes without lock tab. Trees can be fitted with aluminum cowl sets. The spacing is 3-1/2″ center to center of holes for handlebars.

OEM#45700-49, 56121-48, 45700-60

Weight	0.625 lbs
Type	(#24080-0) 1960-68 Chrome Set with lock tab, (#24082-9) 1949-59 Black Set, (#24132-9) 1960-68 Black Set without lock tab, (#24048-6) 1960-68 Chrome Set without lock tab
