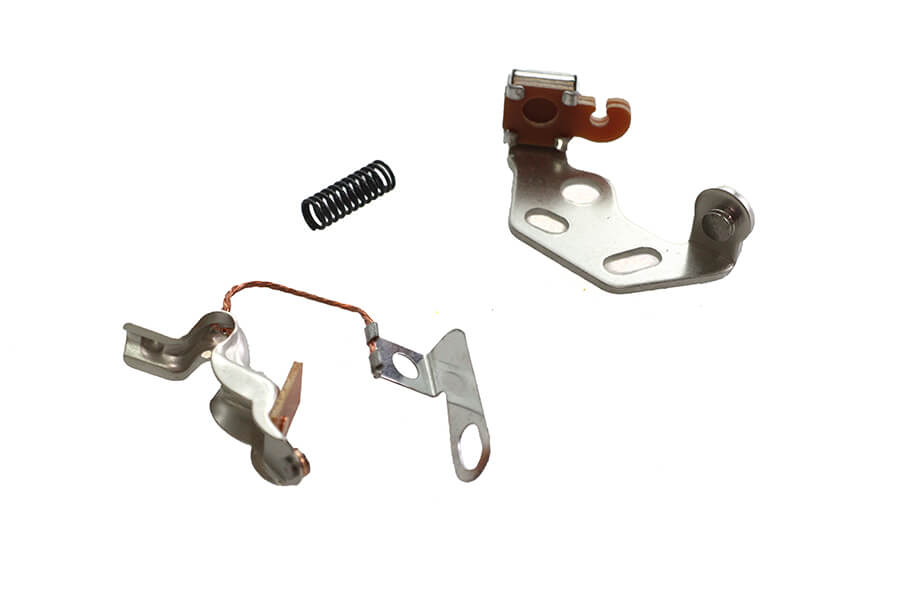

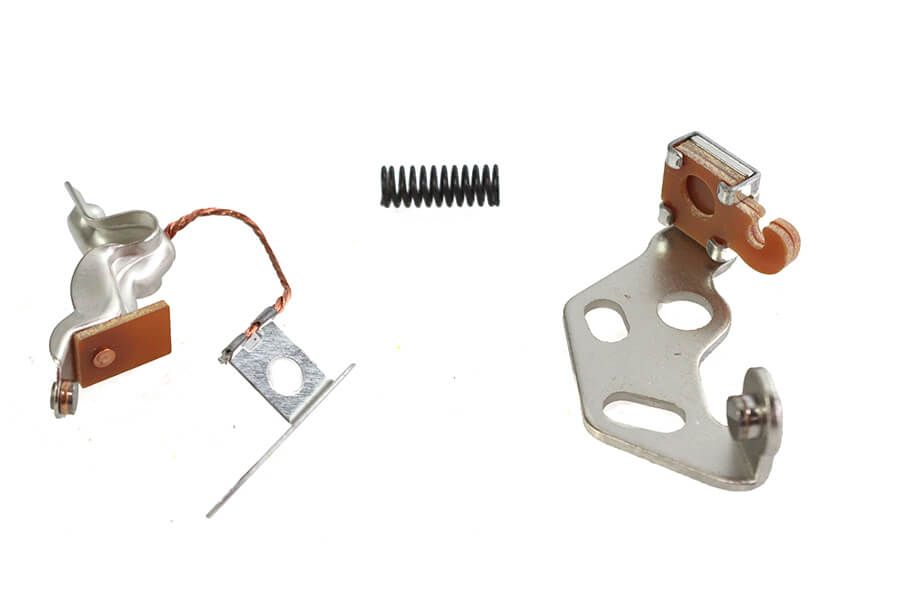

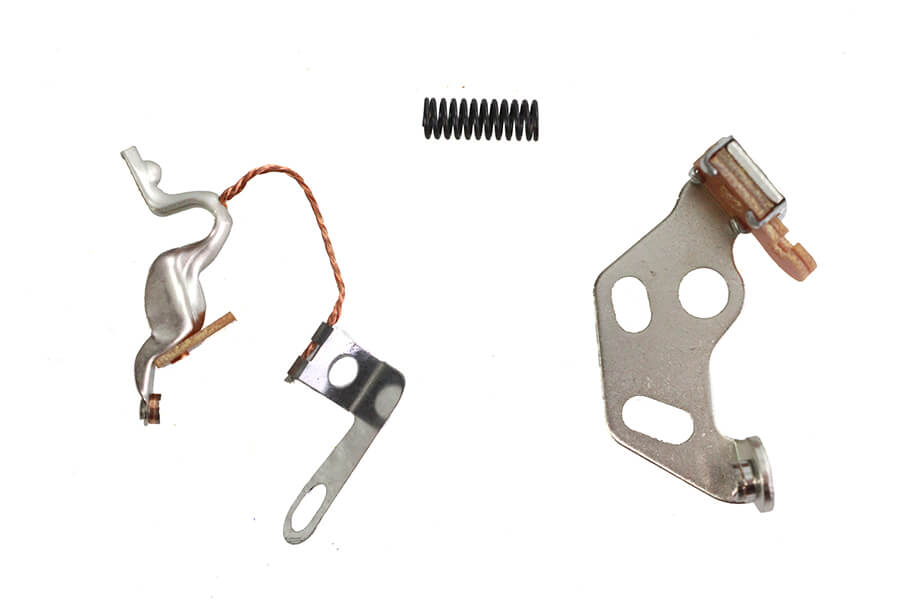

Points Set (1930-47)

SKU: 32658-30

$19.95

Points for 1930-48, all models.

Set of electrical contacts that switch the coil on and off at the proper time.
The mechanical action of the distributor shaft lobes pushes the points open and closed. For use with braided points wire. It is suggested to double up the contact wire to take up the extra slack, fold wire over on itself and press down into the fiber channel to avoid a short. Use flathead screws to mount points as supplied. The spring is .583″ – .585″ long with a .230″ outer diameter and .165″ inner diameter.

HD New#:32658-30 / HD Old#:1569-30A
