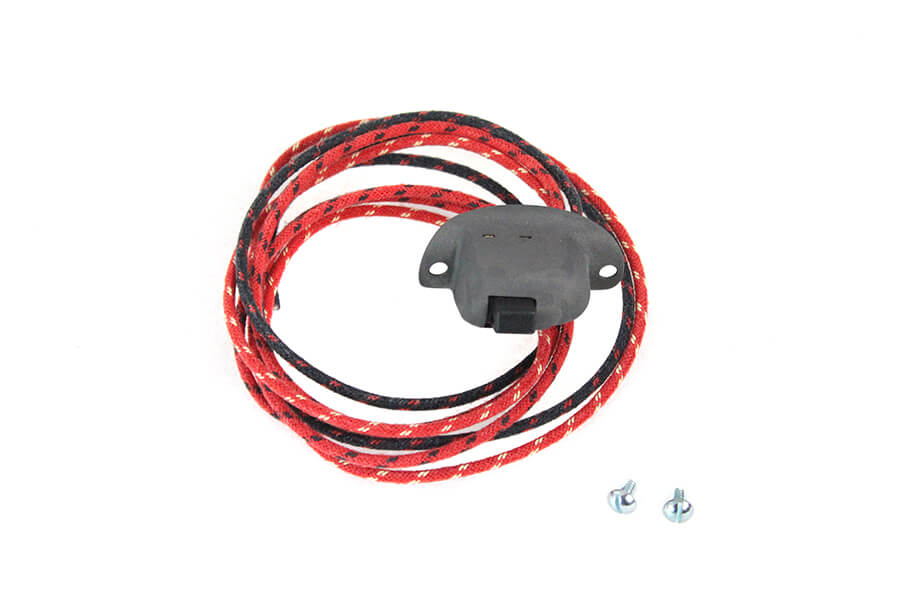

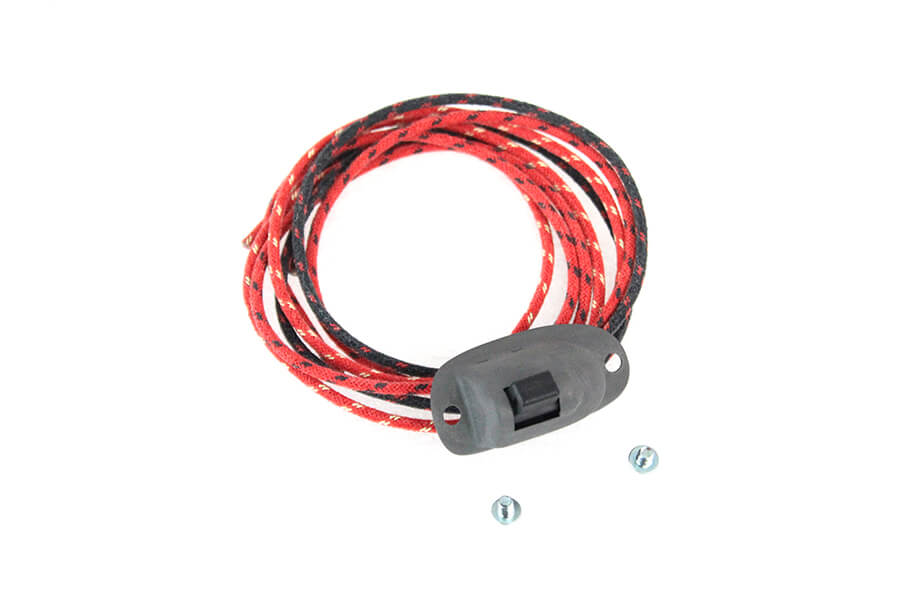

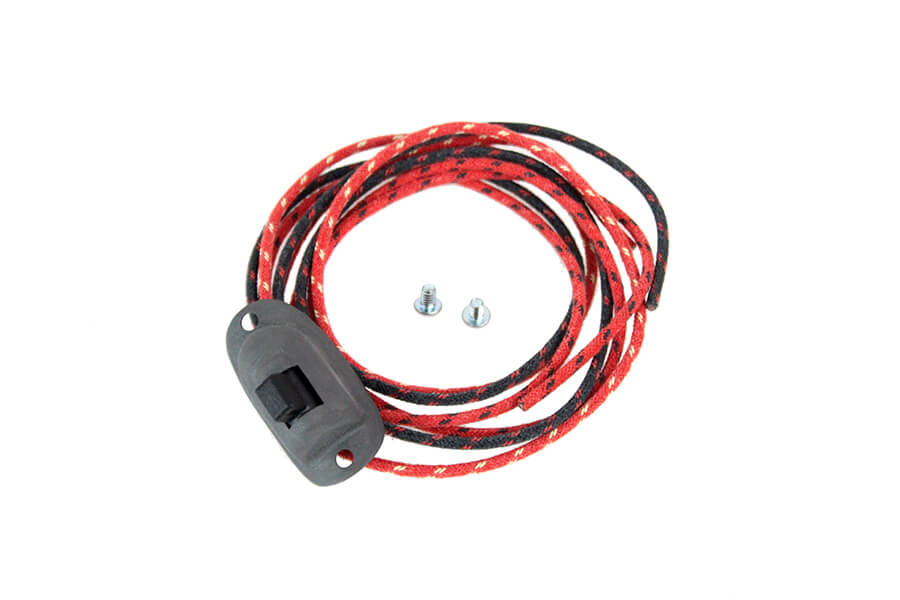

High-Low Switch (parkerized)

Replica handlebar hi-lo two position type dimmer switch, features a parkerized finish and comes with cloth covered wires.
The switch body features an updated shape for a contoured fit to the bar as the OEM. Switch may be painted if desired.

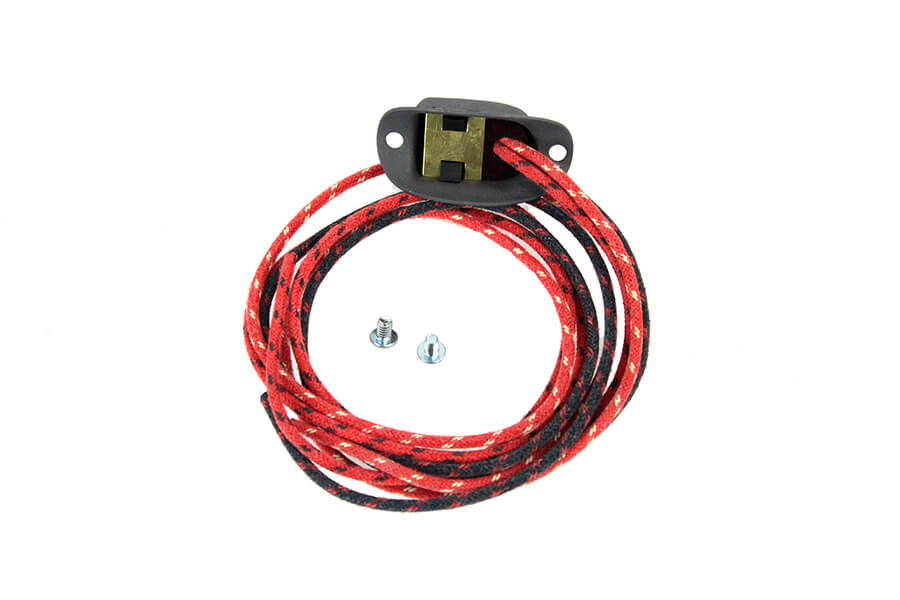

Insulator terminal bar with brass contact bars thick section is installed toward wire entry.  Color coded wires are included. The center wire for the switch terminal block (feed wire) is red with a black tracer, the wire that goes to the large terminal on the Cycle Ray headlamp is black with a red tracer and the wire that goes to the small terminal on the Cycle Ray headlamp is red with a yellow tracer.

HD New#:71840-29 / HD Old#:4760-29
