Gas Tank Fuel Rod Alignment Tools

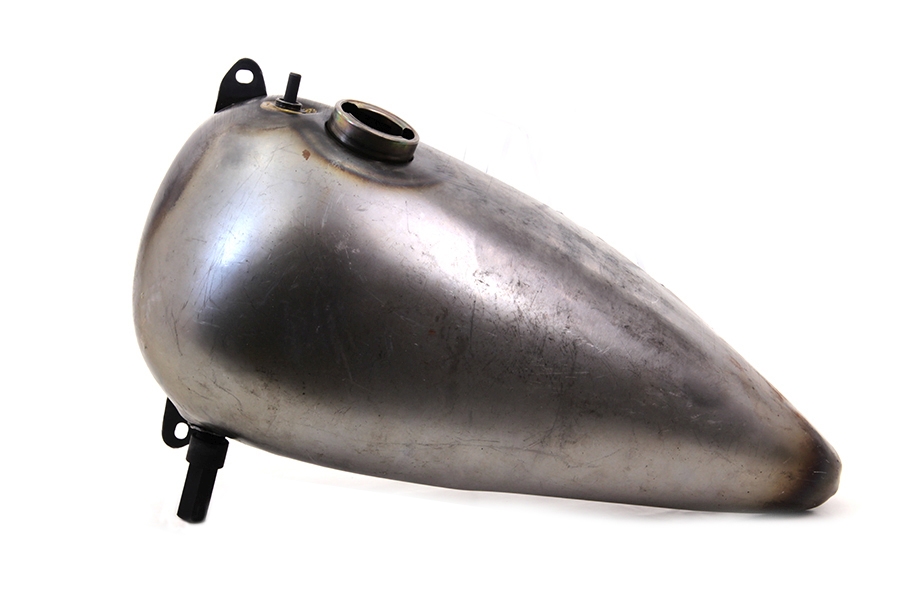

Gas tank fuel rod alignment tool corrects alignment of bottom and top holes.

Choose from these styles:

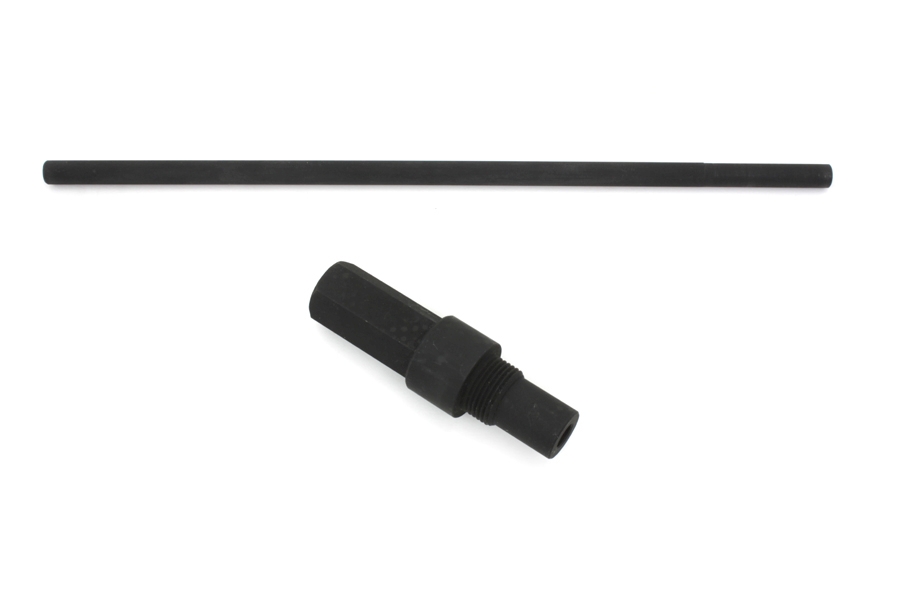

[96365-42] Traditional style tool aligns top and bottom.

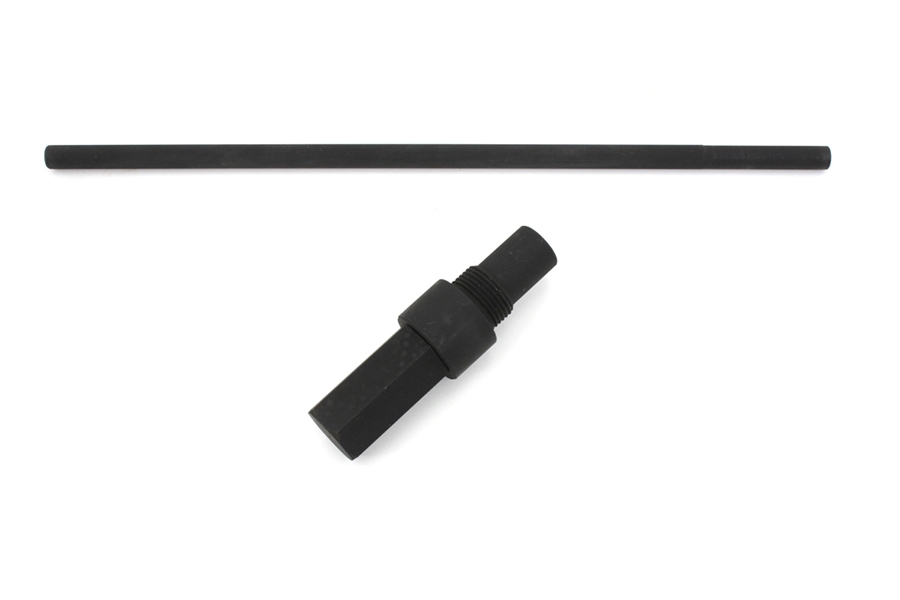

[96365-42R] Hex type aligns bottom (rod seat) to the top.

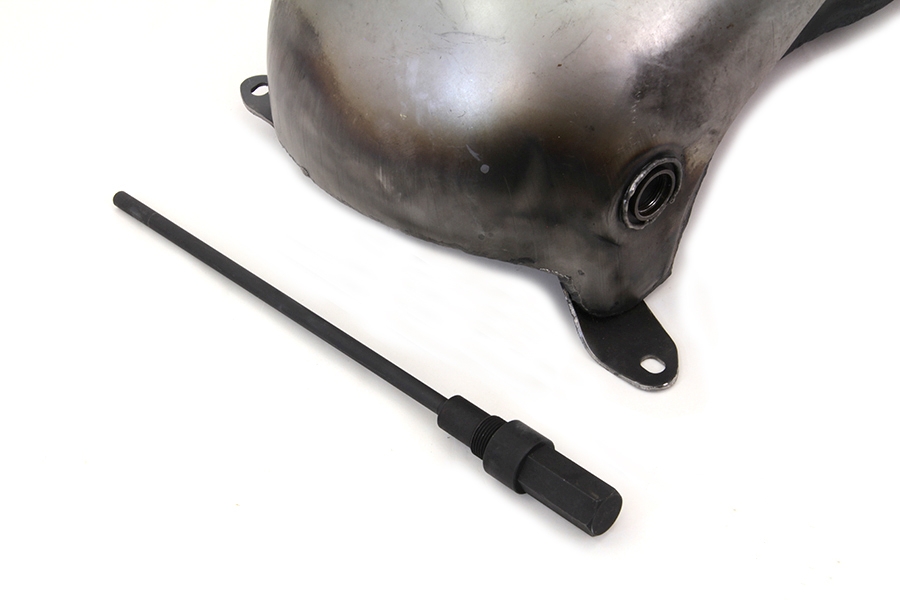

Tool can be used without removing gas tank from the bike! This hex tool allows technician to use a box wrench to tip the lower threaded insert and center the rod while checking alignment. Tank will be more secure while still bolted in place which decreases the risk of damaging it during the alignment process.

HD New#:96365-42 / HD Old#:12775-42

Weight	.0625 lbs
Style	96365-42 Traditional type, 96365-42H Hex type
