Front and Rear Cylinder Kit

SKU: 49037-8

$995.95

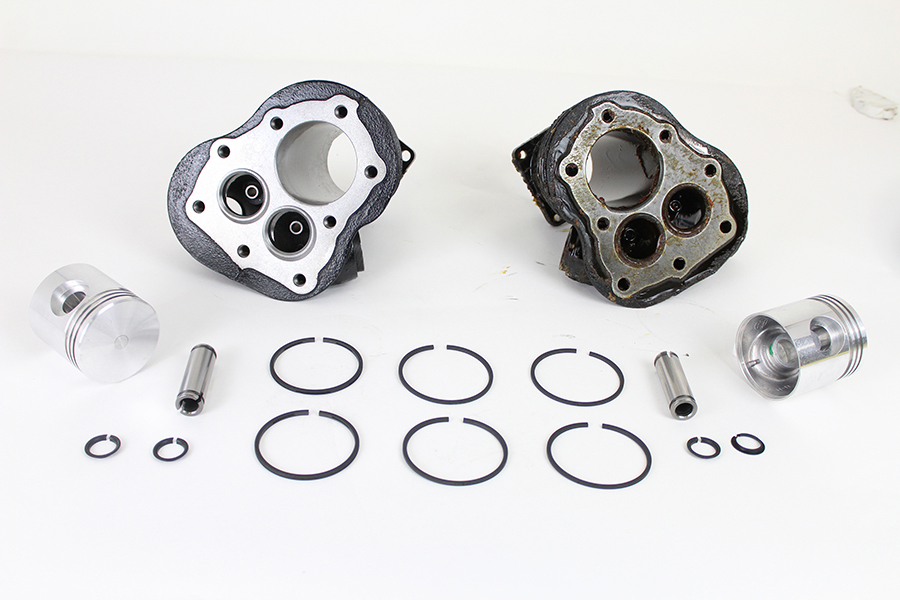

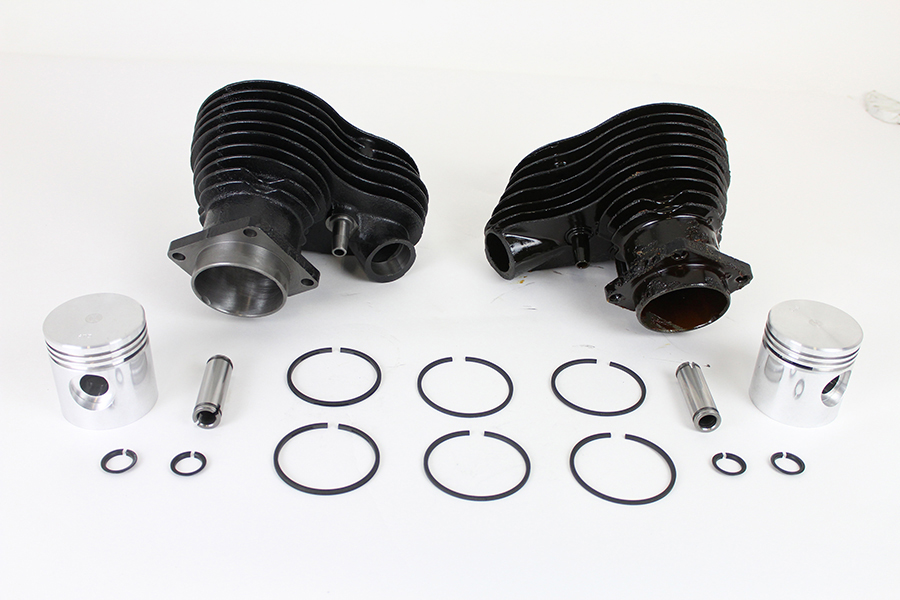

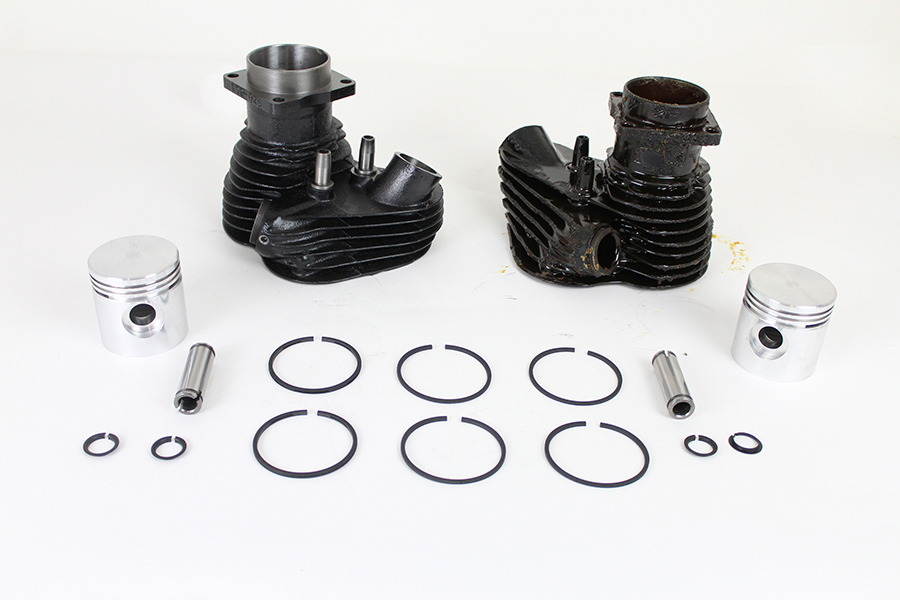

Front and rear cylinder with 2 pistons, rings, valve guides and intake manifold nipples installed. For 45 cubic inch Side Valve, WL and G Servi-Car models. Kit features .005 piston and ring set.

Cylinders have a 2.752 to 2.7515 bore to provide .002 to .0025 clearance over piston size. The cylinder set includes OEM front cylinder with stock piston and replica rear cylinder with original casting marks. Hasting rings and Rowe guides are included. *NOTE: Check ring gap before final assembly.
