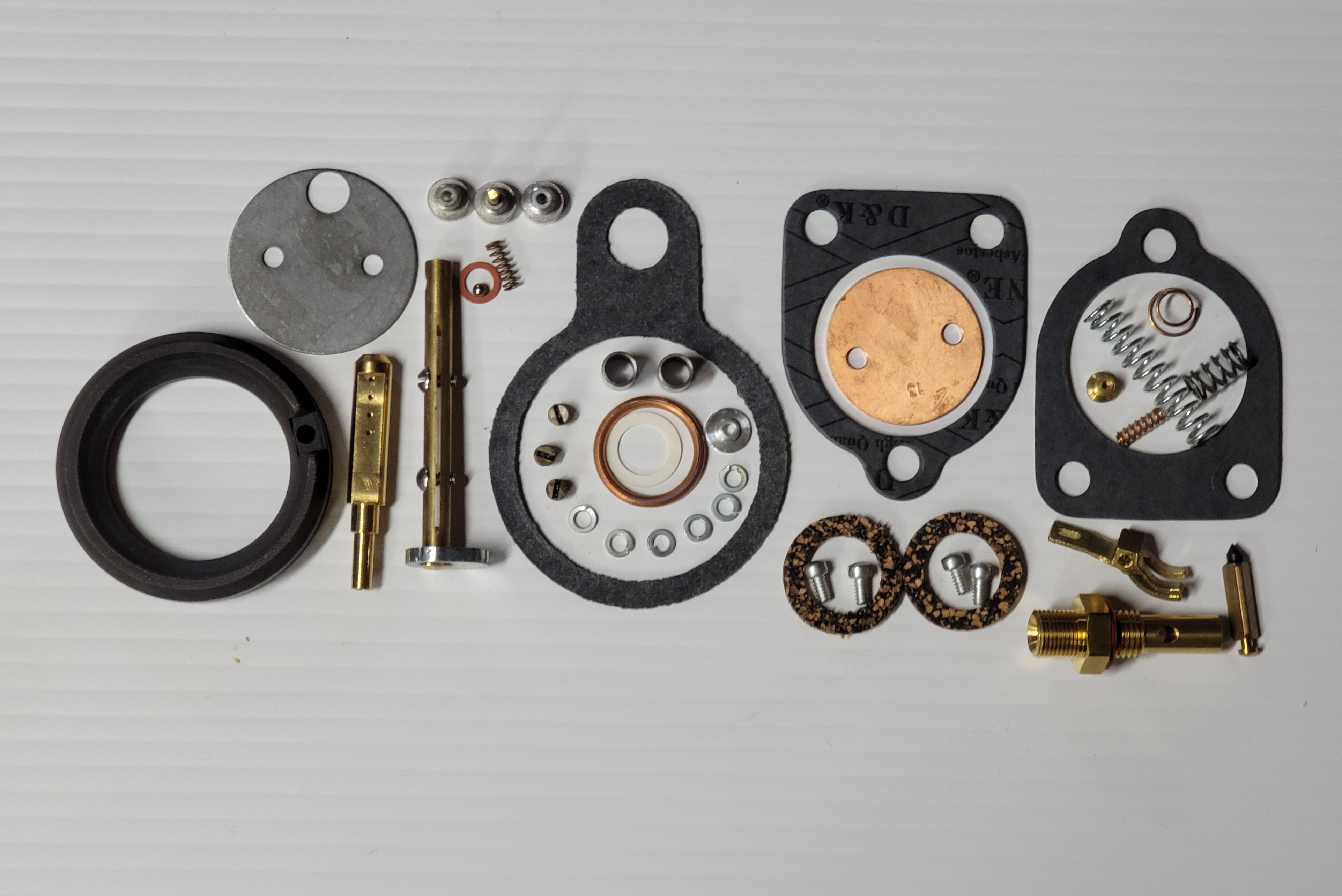

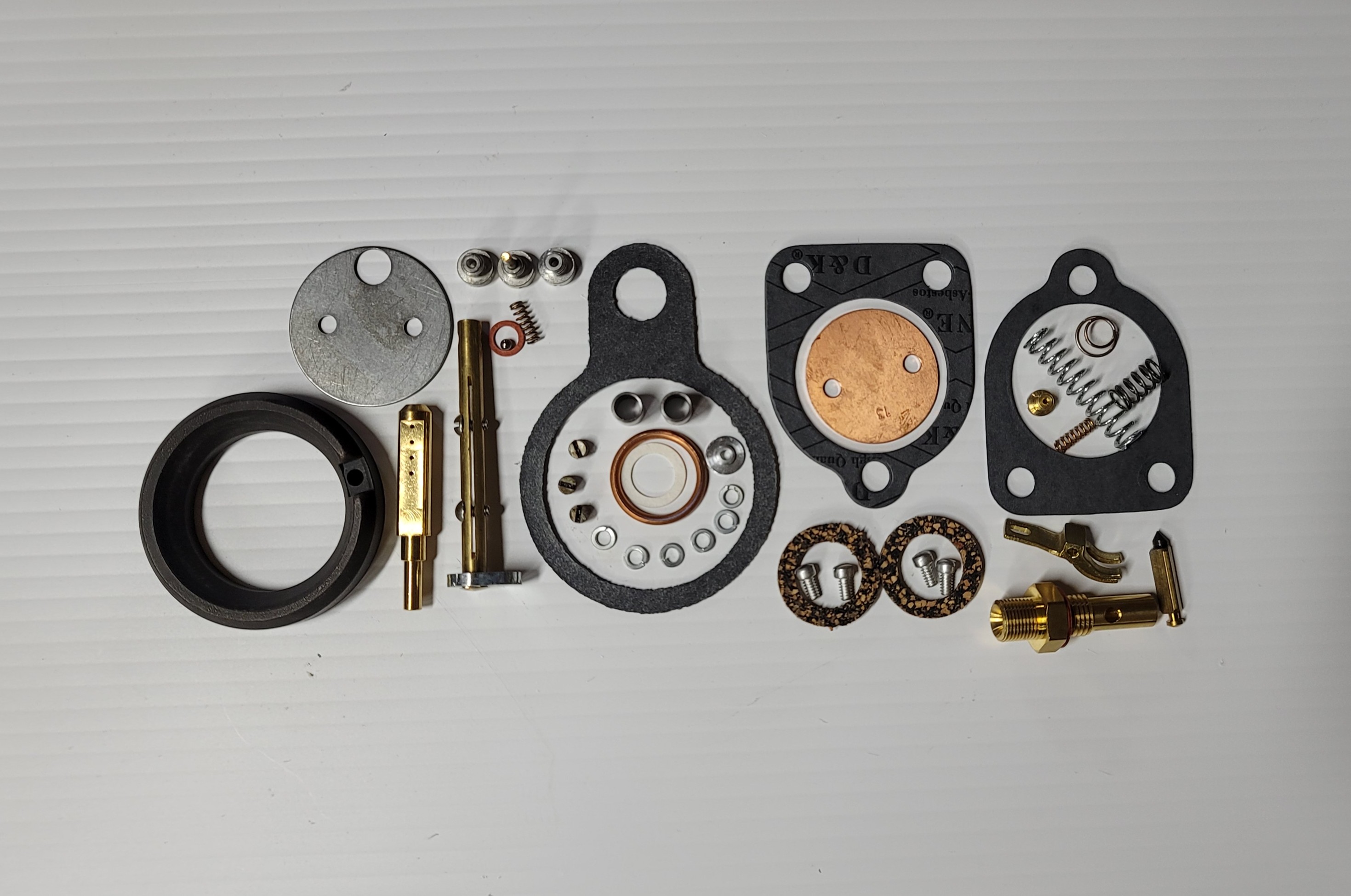

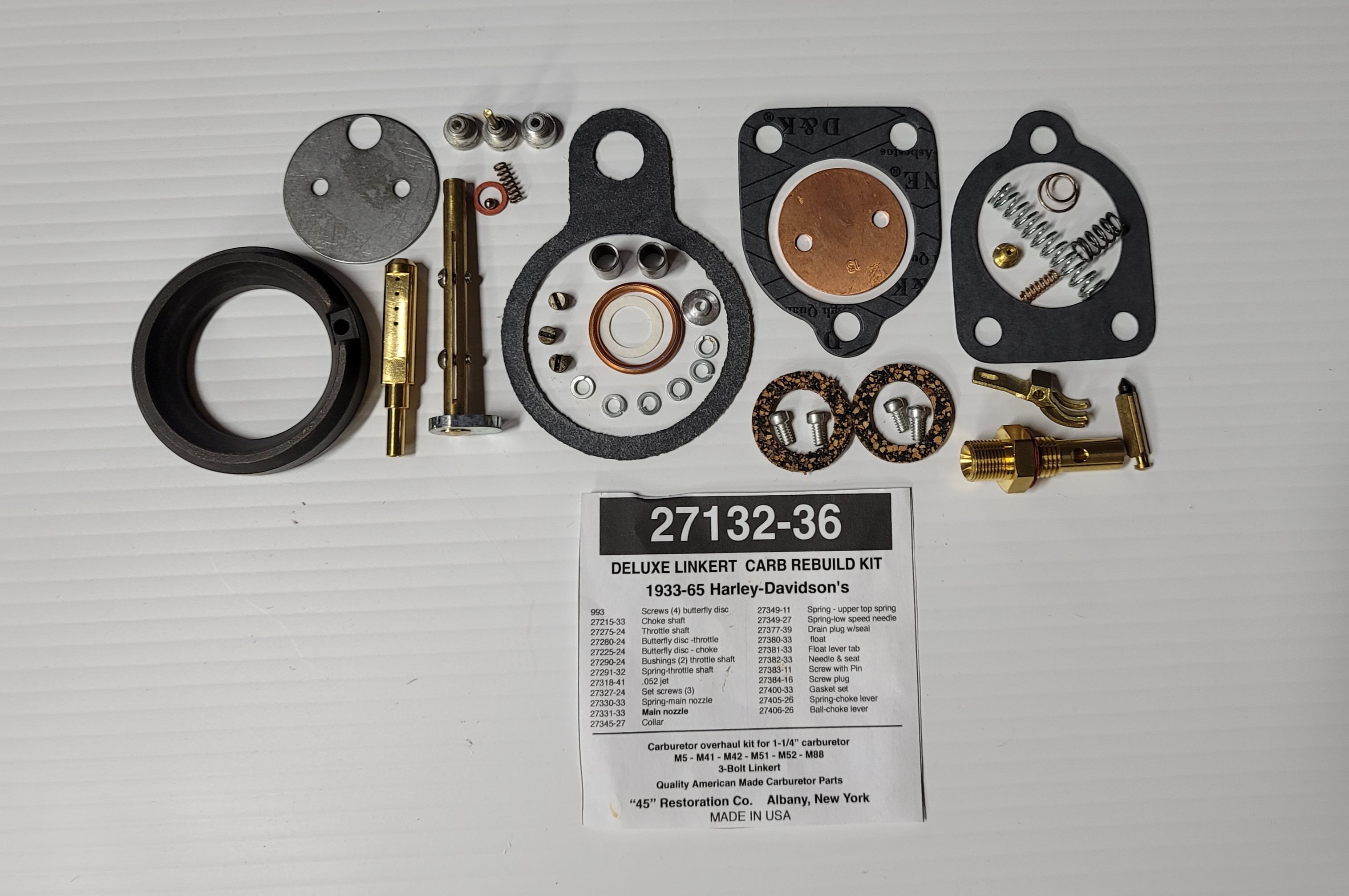

K27132-36 Linkert Carb Rebuild Kit
1933-65 Carburetor overhaul kit for 1-¼” 3-bolt Linkert (M5 – M41 – M42 – M51 – M52 – M88)
INCLUDES:
- 27215-33 Choke Shaft
- 27275-24 Throttle Shaft
- 27290-24 (2) Bushings
- 27330-33 Spring for main nozzle
- 27331-33 Main nozzle
- 27380-33 Float
- 27382-33 Needle & Seat
- 27280-24 Butterfly Disc – Throttle
- 27225-24 Butterfly Disc – Choke
- 993 (4) Screw
- 27291-32 Spring – throttle shaft
- 27318-41 .052 Jet
- 27327-24 (3) Set screws
- 27345-27 Collar
- 27349-11 Spring – upper top spring
- 27349-27 Spring – low speed needle
- 27377-39 Drain Plug w/ seal
- 27381-33 Float Lever Tab
- 27383-11 Screw with pin
- 27384-16 Screw plug
- 27405-26 Spring – choke lever
- K27400-33 Gasket Set
- 27410-39 Manifold Gasket
- 27376-28 Bowl Gasket Washer
- 27391-36 Bowl Gasket
- 27402-33 Seat Gasket
- 62270-32 (2) Filter Cork Gaskets
