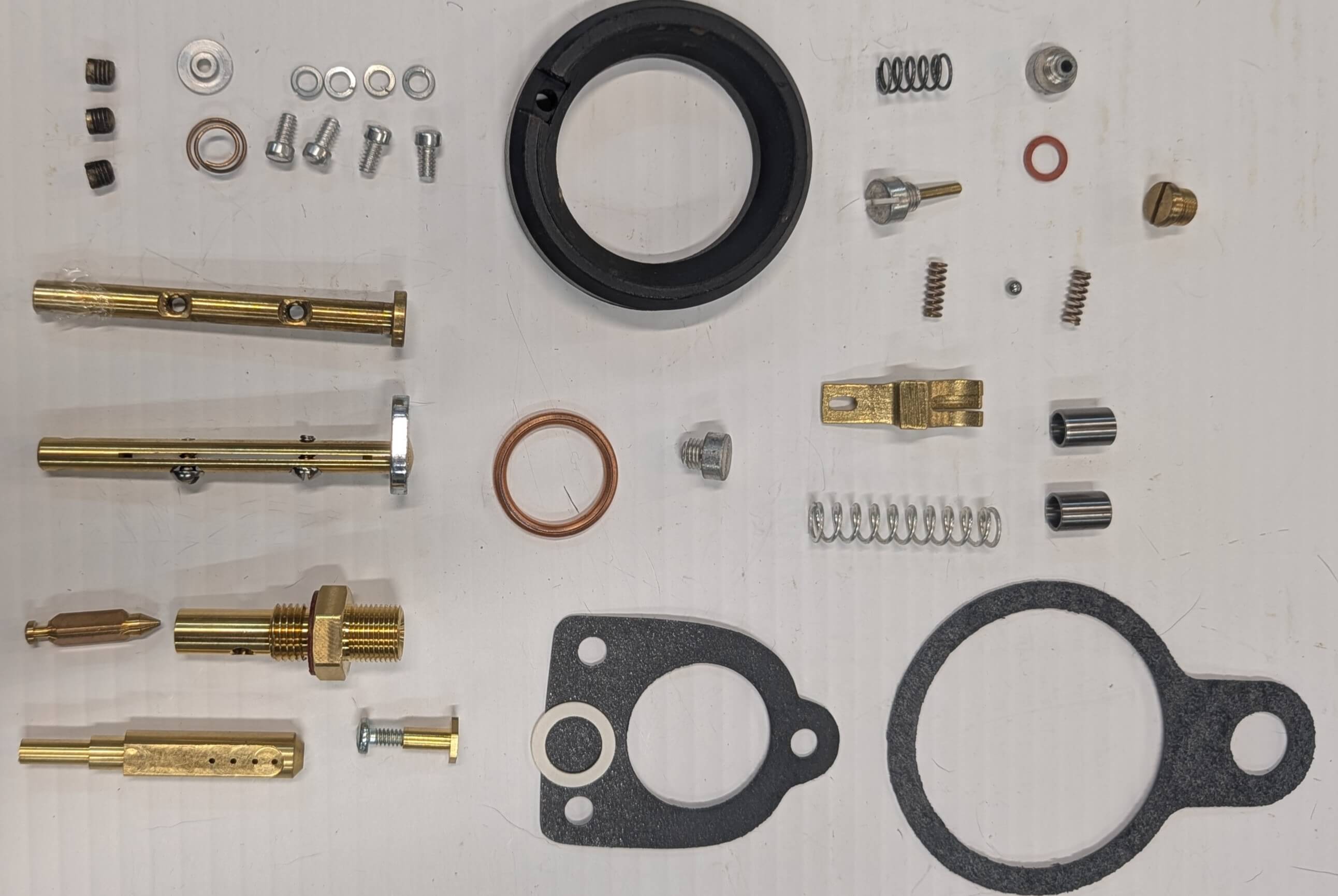

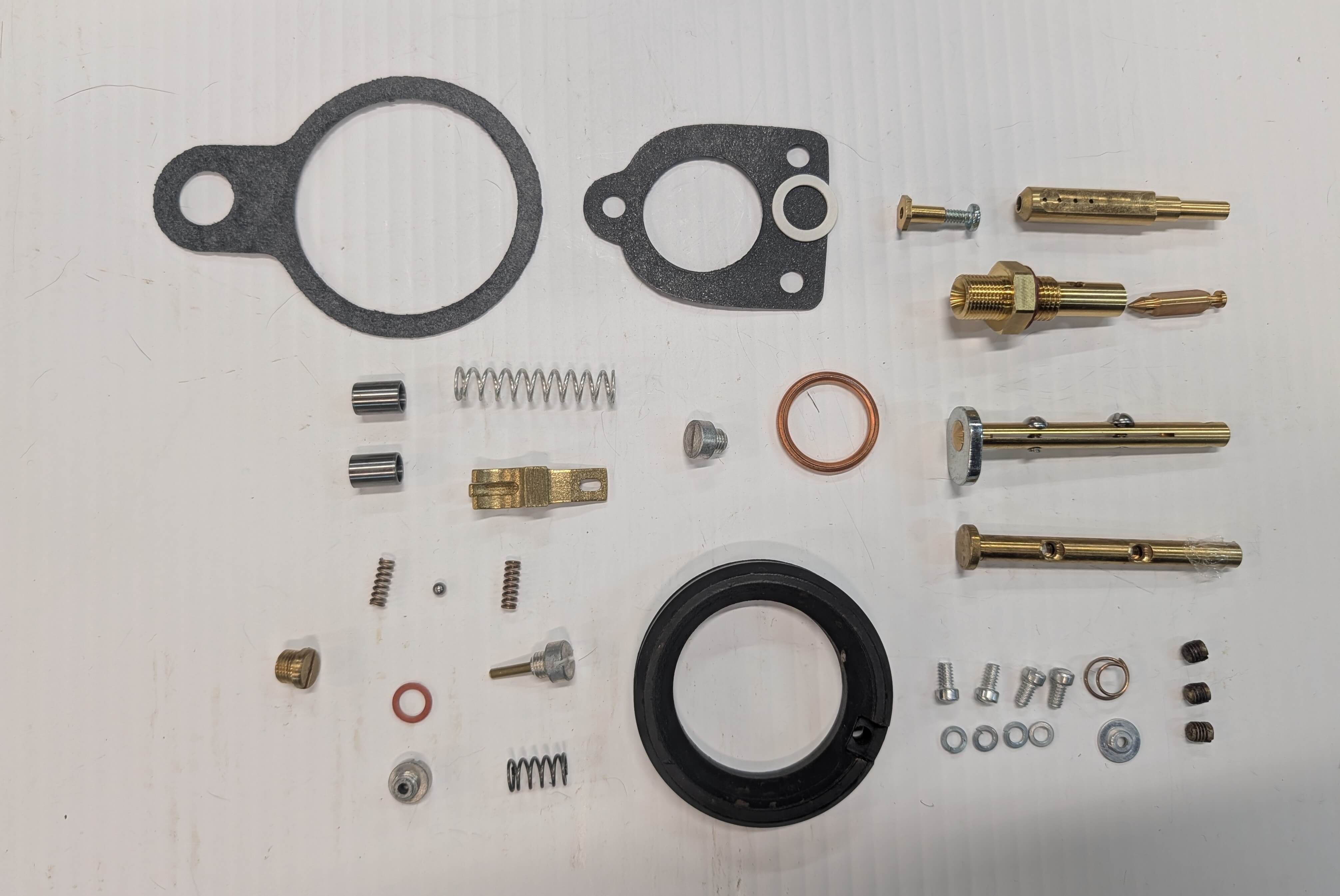

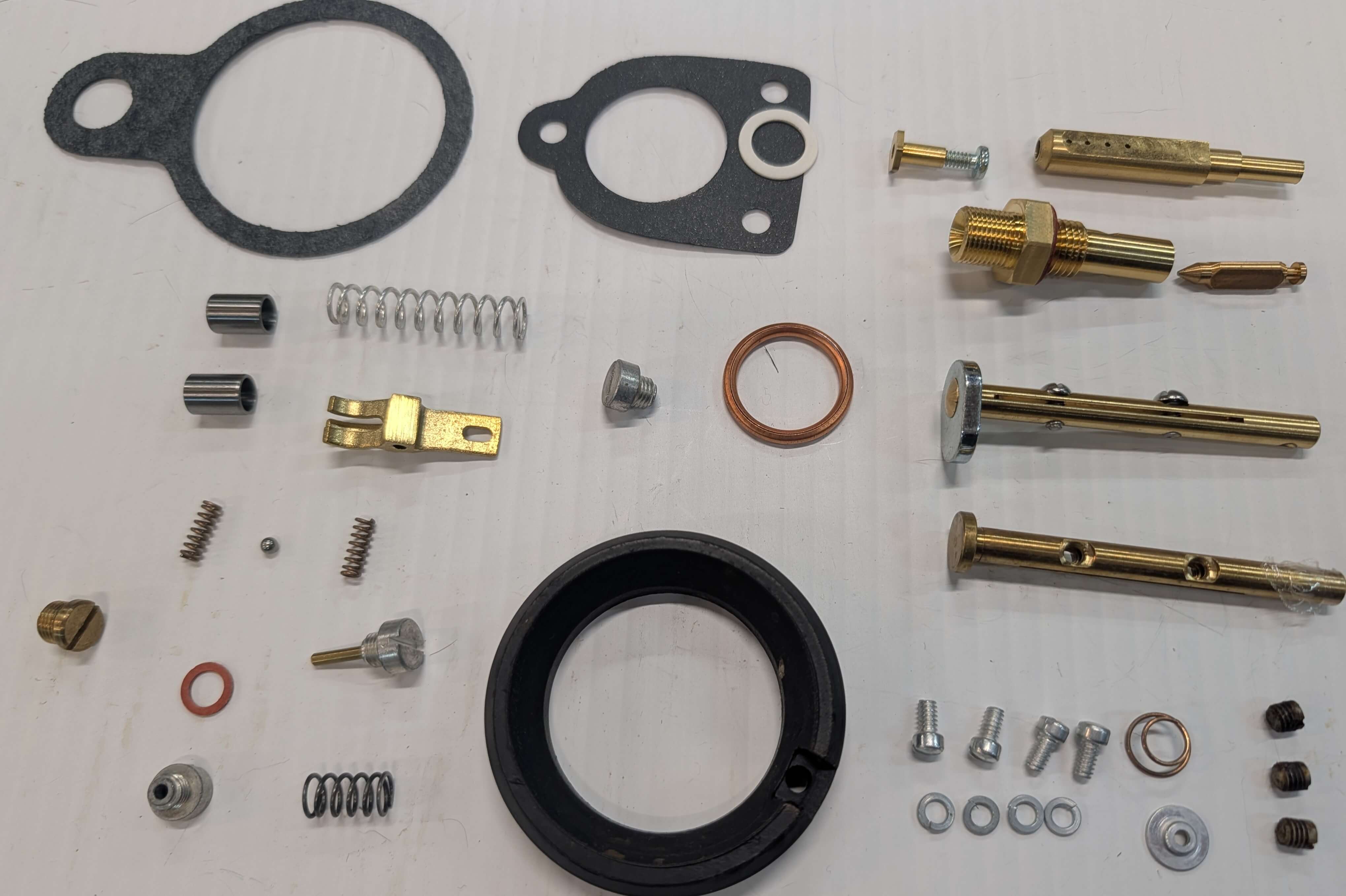

Carb Rebuild Kit 1″ CARBS M-16 and M-18.
Includes:
- 27378-33 Float Pivot Bolt & Nut
- 27215-33 Choke Shaft
- 27275-26 Throttle Shaft 1”
- 27290-24 (2) Bushings
- 27330-33 Spring for main nozzle
- 27331-33 Main nozzle
- 27380-33 Float
- 27382-33 Needle & Seat
- 27325-33 Idle Passage Plug
- 27410-29 Manifold Gasket
- 27376-28 Bowl Gasket Washer
- 27391-36 Bowl Gasket
- 27402-33 Seat Gasket
- 993 (4) Screw
- 27291-32 Spring – throttle shaft
- 27327-24 (3) Set screws
- 27345-27 Collar
- 27349-11 Spring – upper top spring
- 27349-27 Spring – low speed needle
- 27377-39 Drain Plug w/ seal
- 27381-33 Float Lever Tab
- 27383-11 Screw with pin
- 27384-16 Screw plug
- 27405-26 Spring – choke lever
- 27406-26 Ball – choke lever
