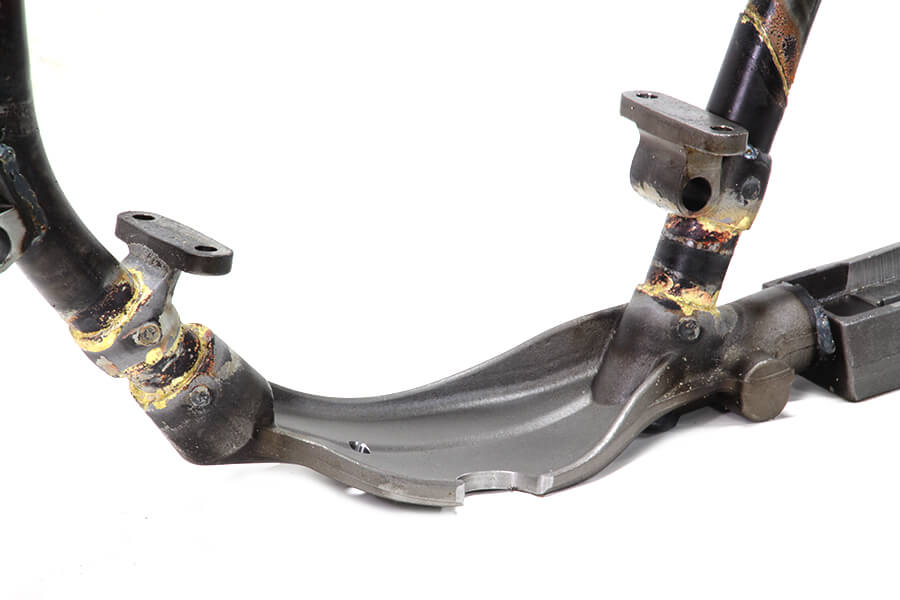

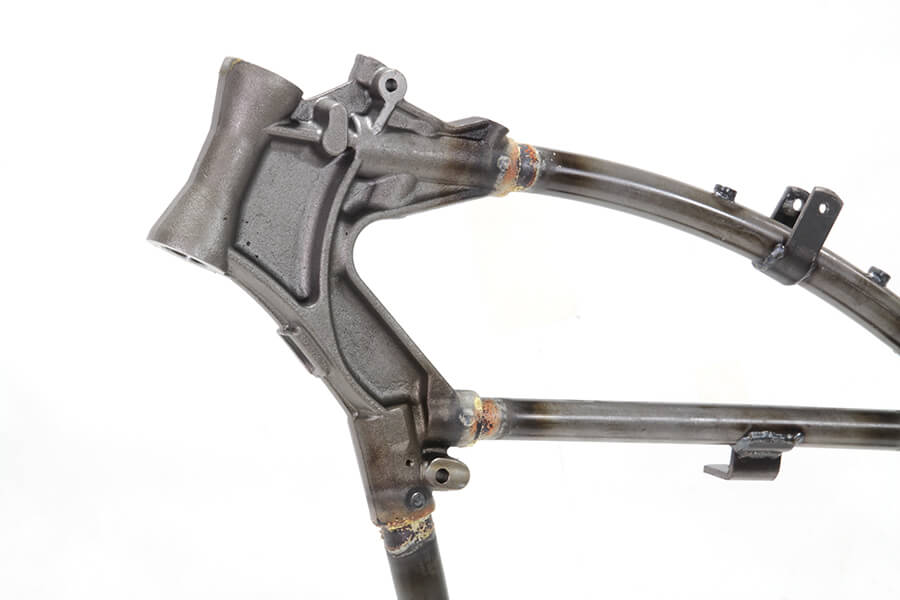

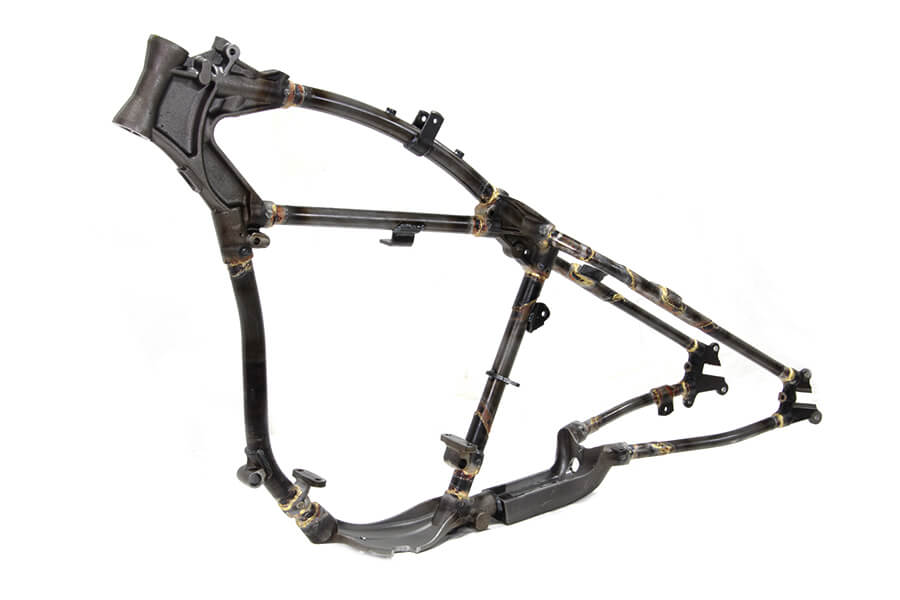

45″ Rigid Frame

SKU: 47003-41

$2,195.00

Replica 45 W stock style rigid frame with brazed joints features a raw finish.
Don’t forget the pre-assembly procedure! Before primer and paint, the frame will require de-greasing. Frame accepts 3 bolt transmission case. Top frame tube has threaded inserts to attach center tank panels.

There are no serial numbers stamped on the replica frame. The seat bushing is pressed into the frame. Battery box tab is correctly offset to the left side as original, looking from rear of frame. Must align motor mount holes, transmission case, to fit adjuster screw alignment. Tool box mount tabs must be added to the right side.

HD New#:47003-41 / HD Old#:2802-41
