18″ Spoke Sets

Choose from the following for 18″ rims:

Solo Front Wheel Spoke Sets

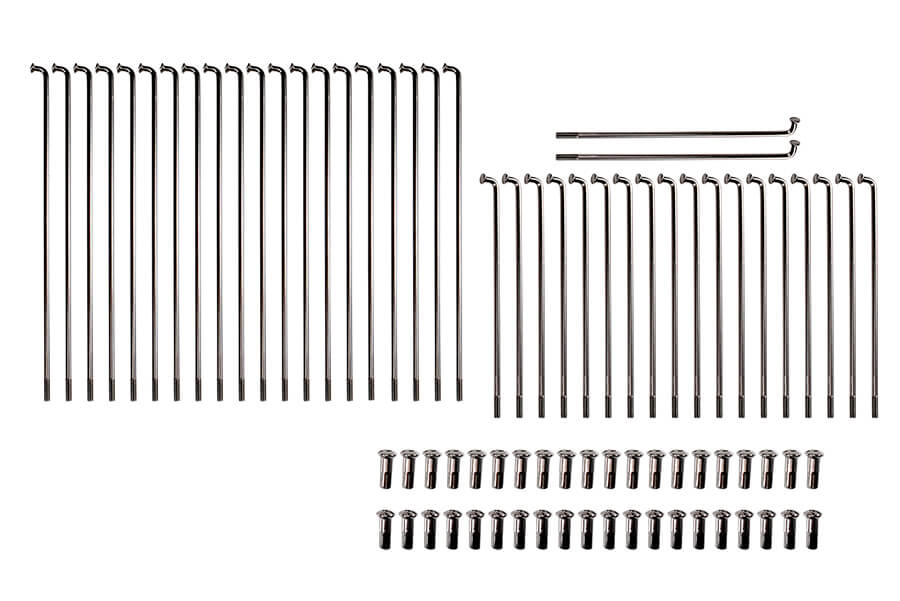

Stainless Steel Front Wheel Spoke Set:  For stock OE spoke pattern lacing on a 18″ front conventional rim. 9 gauge diameter single stage spokes come in two sizes, 21.5mm and 15.5 mm. Front solo spokes are different lengths depending on if they attach to the hub side or brake drum side. Cross four on drum side, and two on small hub diameter end. Kit includes 40 spoke nipples.  Nipples are stainless steel. If required, longer nipples are available separately. We suggest using 26mm long nipples when lacing 45 front drum wheels. Stainless can also be bead-blasted to give the cad plated look.

Star Hub Spoke Sets

Cad Plated Star Hub Spoke Set: 18″ cadmium plated spoke set includes 40 spokes and 40 nipples. This set is for use on a front or rear 18″ x 2.50″ rolled edge replica style center rim with a flat flange hub. The nipples may be replaced with stainless steel nipples.

Chrome Star Hub Spoke Set: Set fits Star Hub Wheels 8-1/4. Chrome 6-8 gauge spoke set features 40 spokes with 40 spoke nipples.  For use on a 18″ front or rear drop center rim with a flat flange hub. Measures 7-3/4″ from inside of elbow to end of spoke including thread.

Stainless Steel Spoke Set: 18″ stainless steel spoke set features 40 spokes and 40 spoke nipples.  For use on a 18″ conventional rim with a steel flat flange hub.

Parkerized Spoke Set: 18″ parkerized spoke set features 40 spokes and 40 spoke nipples.  For use on a 18″ conventional rim with a steel flat flange hub.

CAUTION: Nipples may seize on spokes without sufficient application of lubricant. Thoroughly coat all spoke and nipple threads before assembling and truing wheel. Spokes cannot be properly torqued without lubrication.

HD New#:43029-30 / HD Old#:3945-30A
